| Technical Data | |
|---|---|
| Max Flow Rate | 200 LPM |
| Max Suction Lift-Dry Condition | 4.57 m(Rubber Diaphragm) 3.05 m (PTFE Diaphragm) |
| Max Suction Lift - Wet Condition | 7.62 m(Rubber Diaphragm) 6.09 m (PTFE Diaphragm) |
| Max Particle Size | 6.35 mm |
| Air Inlet Pressure | 2 - 6 kg/cm2 |
| Suction Port | (50.80 mm) 2” BSP Threaded/Flanged |
| Discharge port | (50.80 mm) 2” BSP Threaded/Flanged |
| Air Inlet Port | 3/8” BSP Threaded |
| Air Exhaust | 3/4 “ BSP Threaded |

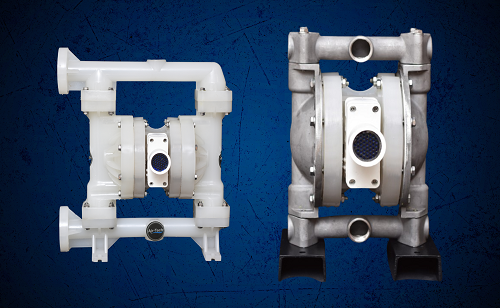

The designation "AODD-500 (2'')" likely refers to a specific model or series of Air Operated Double Diaphragm (AODD) pump with 1 1/2-inch inlet and outlet connections.
Flow Rate:AODD-250 pumps can typically handle moderate to high flow rates, often ranging from several gallons per minute (GPM) to several hundred GPM, depending on the model and configuration.
Material of Construction: AODD-250 pumps are commonly available in a variety of materials to suit different applications. Common materials include stainless steel, aluminum, polypropylene, and various types of elastomers for the diaphragms and seals. The choice of materials depends on factors such as the type of fluid being pumped and environmental conditions.
Pump Design: AODD pumps typically have a simple design consisting of two diaphragms that reciprocate back and forth, driven by compressed air. This design makes them suitable for handling viscous, abrasive, or shear-sensitive fluids without damaging the product.
Pressure Rating: These pumps can generate moderate to high discharge pressures, often ranging from a few psi (pounds per square inch) to several hundred psi, again depending on the specific model and design.
ATEX Certification: Depending on the application, AODD pumps may need to meet certain safety standards and regulations, such as ATEX certification for use in potentially explosive atmospheres.
